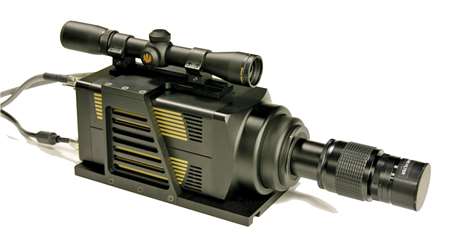

Fast Solar Blind Imaging Radiometer

CI’s new SBUV imaging radiometer is the perfect tool for quantitatively measuring SBUV sources in the field. It measures SBUV phenomena in a very large dynamic range, high frame rates and high spatial resolution with excellent wavelength specificity. The imager is supplied with calibration curves that allow the user to accurately calibrate measurements, advanced measurement and analysis software and a rifle-scope for aid in aiming.

SpecificationsFeaturesOptions

Item

Value

Comments

Wavelength range

245÷285 nm



Out of band rejection

No signal when directly viewing the sun



Spatial resolution

512 x 512

Pixels, measured resolution of < 90 lp/mm

with 105 mm lenses

Frame rate

17 Hz at full resolution and up to 200 Hz

See table

Lenses

105 mm f/4

Focus range from a few meters to infinity

Sensitivity

Will clearly measure a 30 Watt D2

lamp from 3 Km

See image, measured with Ozone level 28 ppb

Field of view

9.8 degrees

with 105 lenses

ND filters

0.1, 0.3, 0.5, 1.0, 2.0, 3.0, 4.0 OD

Included with system



Imagers spatial resolution vs. frame rate

Binning

512 x 512

200 x 200

100 x 100

1 x 1

17

42

77

2 x 2

35

77

143

4 x 4

65

143

200

  • Operates in the SBUV waveband with no signal, above background, when pointed directly at the sun
  • Very high sensitivity
  • Very high dynamic range
  • Choice of collecting optics
  • Frame rate as high as 200 Hz
  • Comes complete with a set of 7 ND filters,
  • 105 mm lenses, rifle-scope, lunchbox PC, calibration data and software
  • Interfaces a standard tripod
  • 28mm or 78 mm lenses
