WFOV - Wide Field of View Test Systems

Wide Field of View Standard Collimators

The CI Systems Wide Field of View IR test system is used for testing thermal imagers in their wide field of view mode of operation. Typical applications include navigational FLIRs and commercial imagers.

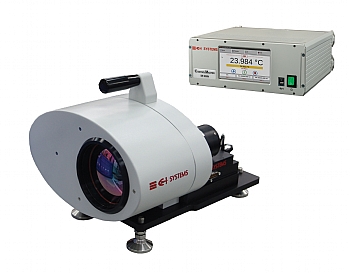

CI Systems’ unique compact WFOV Test System combines an optical collimator with IR Radiation Source (Blackbody or Integrating Sphere) and a target wheel. The system can be used for performing a range of IR testing tasks such as MTF, NETD, MRTD, FOV etc.

The WFOV Test System can be controlled using the controller or using a computer via Ethernet or RS232 communication. The system is fully compatible with CI System’ Automatic Computer Test Executive (CTE) Software for electro-optical testing.



Technical Article:

WFOV EO Test Systems



For more information
FeaturesOptionsSpecifications
  • Collimator type: On-axis refractive collimator
  • Optical Resolution:  2.5 cy/mrad.  For targets with higher resolutions please contact CI Systems
  • Operational temperature range: from +10 to +35 deg.C
  • User Friendly: Easy to align and operate
  • Motorized Target Wheel:  CI Systems offers a large variety of targets for applications from VIS to LWIR.
  • Target wheel precision: Position Accuracy 0.1 mrad,  Repeatability 0.05 mrad
  • 19” rack mountable controller
  • Communication:  Ethernet, RS232
  • Rugged construction design: per MIL-STD-810G (secured cargo)
  • CTE S/W: All functions can be controlled using CI Systems’ CTE automatic test software
  • Optional Radiation Sources available:
  • Focus Stage:  Simulating shorter finite distances is possible upon request
  • Optional Communication: GPIB IEEE-488

Specifications: Standard models

(table WFOV #1)

Model Name

Spectral Band, µm

Field of View,

deg.

Clear Aperture, mm

Focal Length,

mm

Target positions

Target plate dia., mm

WFOV 11.7 SWIR 0.9-1.7

0.9 to 1.7

11.7

107

100

12

20

WFOV 11 MWIR 3-5

3 to 5

11.0

100

100

12

20

WFOV 15 MWIR 3-5

3.6 to 4.9

15.0

70

100

8

30

WFOV 11 LWIR 8-12

8 to 12

11.0

100

100

12

20



Specifications: Special WFOV models

(table WFOV #2)

Model Name

Spectral Band, µm

Field of View,

deg.

Clear Aperture, mm

Focal Length,

mm

Notes

WFOV 8.25 VIS. 0.4-0.7

0.4 to 0.7

8.25

107

300

F/2.8

WFOV 15 VIS. 0.4-1.0

0.4 to 1.0

15

110

450

Entrance pupil dia. 15mm

External 280mm

WFOV 65 LWIR 8-12

8 to 12

65

77

82.3

Entrance Pupil dia. 20mm

External 30mm

WFOV 45 LWIR 8-13

8 to 13

45

95

109.3

Entrance Pupil dia. 16mm

External 80mm
