Setting New Standards In Electro-Optical Testing

Collimators

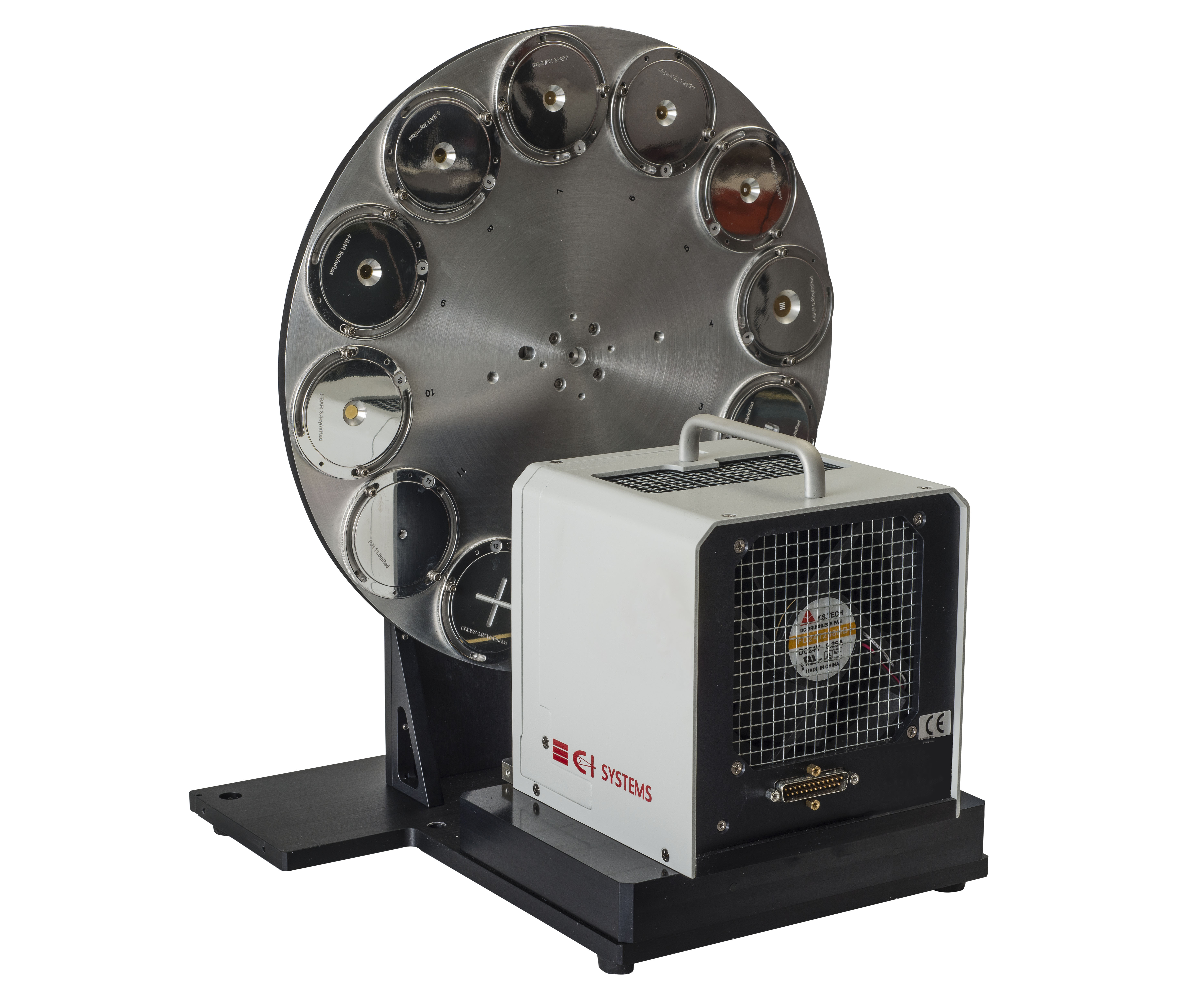

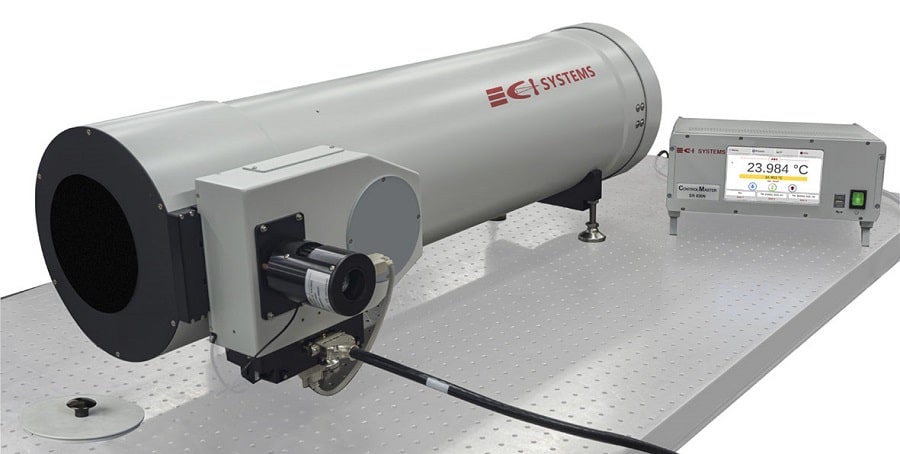

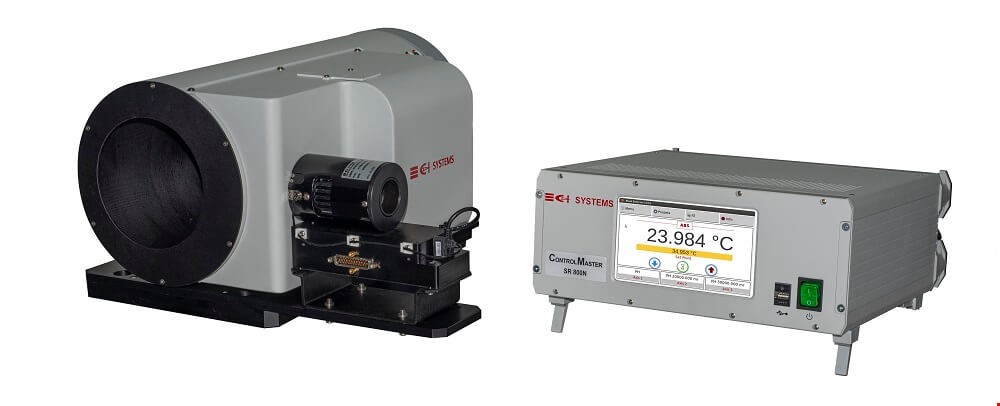

CI Systems' collimators accurately project patterns of radiation as if coming from a large distance (infinity) to test the performance of IR imaging systems (FLIR's). The integration of a collimator with blackbody sources and a target wheel on its focal plane creates CI Systems' FLIR testers series. These FLIR testers are available in standard sizes to satisfy the test requirements of most sensor systems. Additionally, the collimators modular design allows easy customization of components. Contact us for built-to-specification collimators and FLIR testers.

Main Collimator features

  • Suitable for broad-band applications (0.4µm - 15µm)
  • Large clear aperture range of diameters (4" - 19")
  • Large Field Of View range (1° - 11°)
  • Retain accuracy over a wide range of temperatures
  • Diffraction limited on axis

  • High reflectivity mirror
  • Rugged collimator construction
  • IEEE-488 (GPIB), RS232 ethernet communication ports.
  • Portable collimator configuration

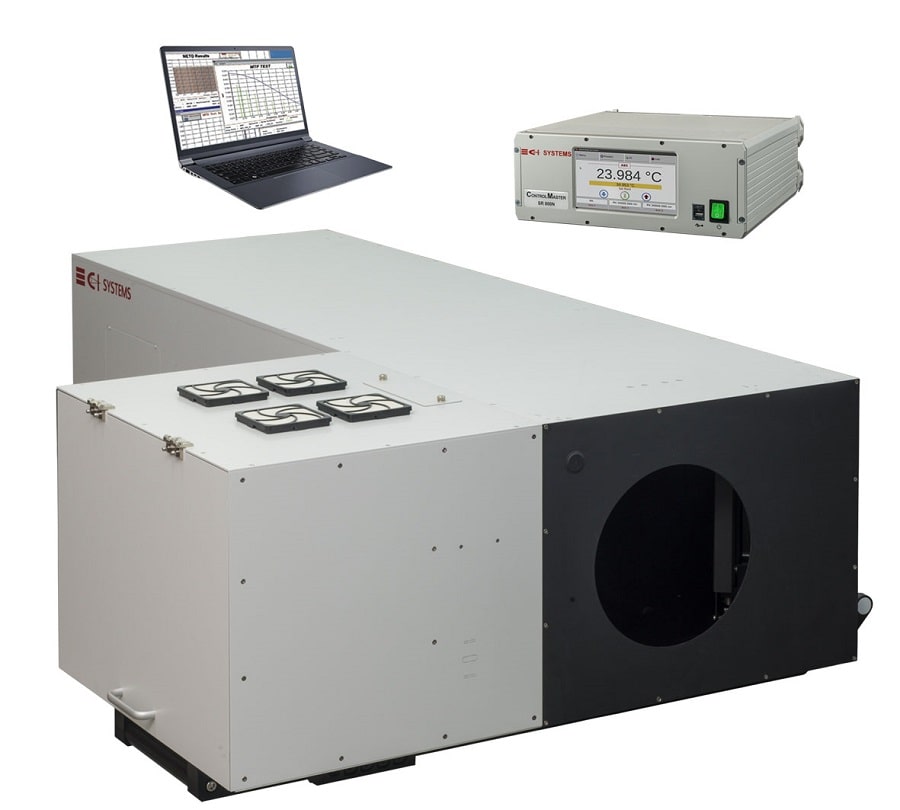

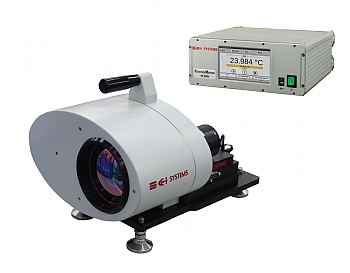

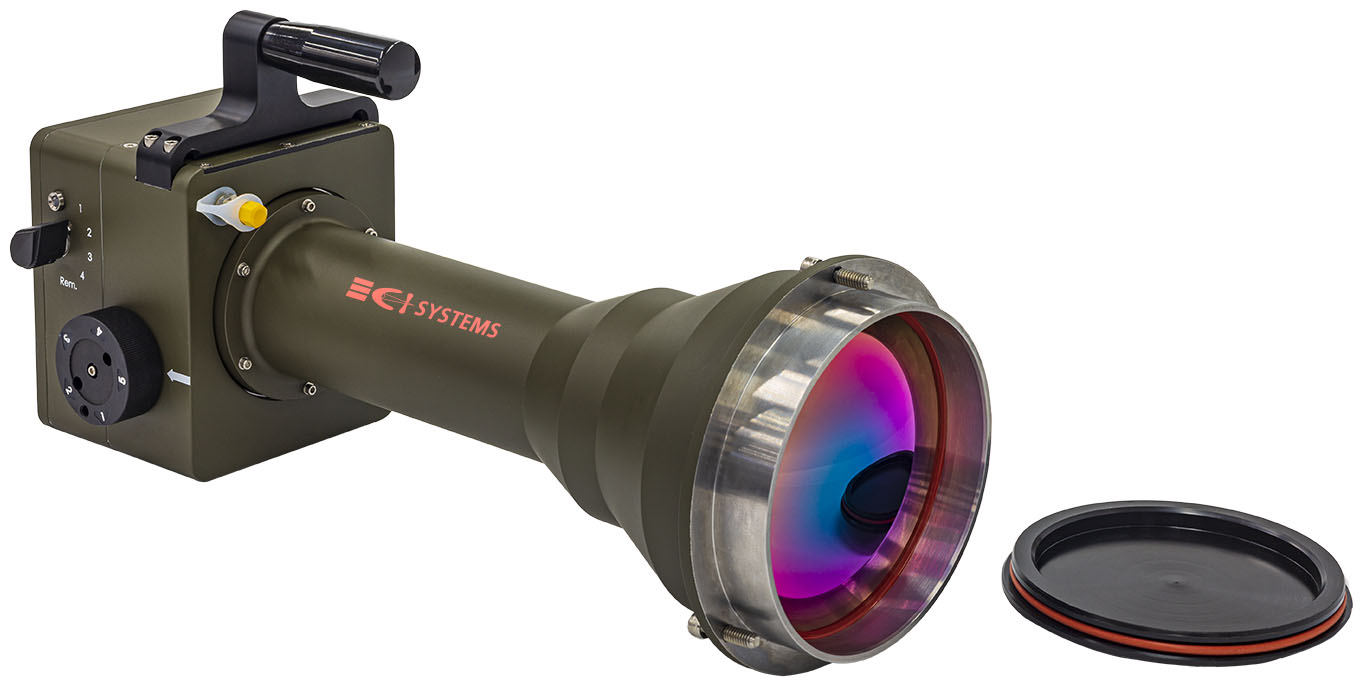

CI Systems also offers standard and built-to-specification collimators including large aperture, long focal length optical bench configurations, wide field of view refractive collimators and portable athermal field/depot collimator configurations.
