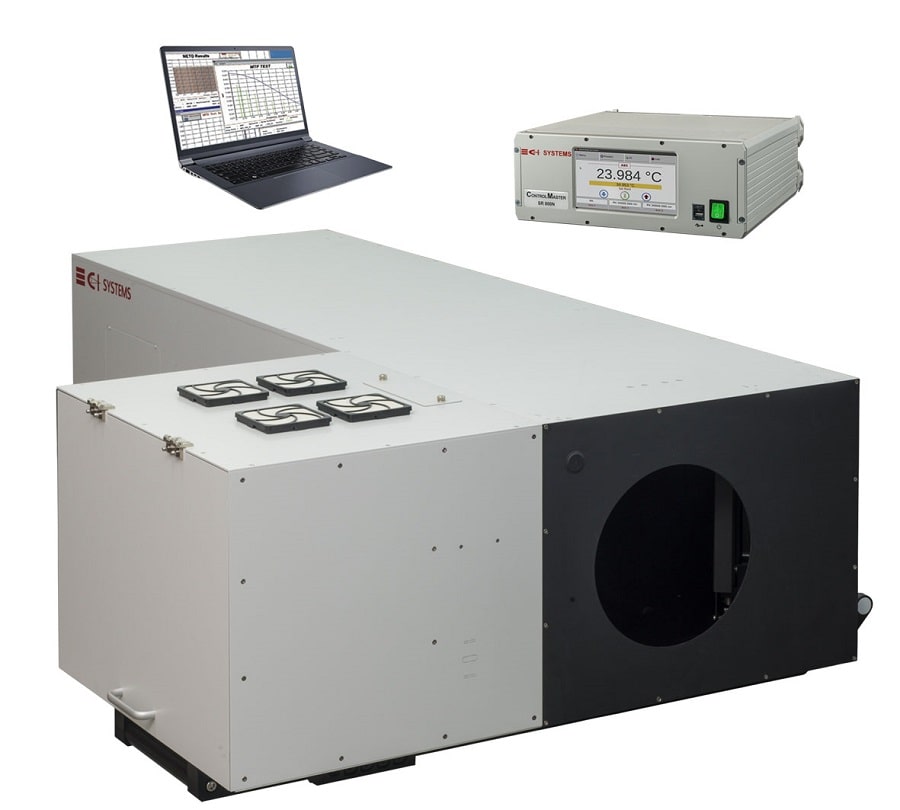

The METS, incorporating CI Systems’ reflective optics, extended area blackbody and a motorized target wheel, provides fast, reliable testing producing repeatable, objective results.
As a modular system, the METS easily be modified for a range of electro-optical testing applications, including testing of:
The METS can be operated on the production floor, in the laboratory, and in the depot, and can be used in conjunction with CI Systems’ CTE automatic electro-optical test software.
For more information
- Superior optical quality, wavefront error better than λ/25 RMS
- Rugged design per MIL-STD 810G (secured cargo)
- High accuracy and stability blackbody
- 6 or 12 plates target wheel
- The METS is designed to retain its accuracy over a wide temperature range
- All functions can be controlled via a computer using CI Systems’ CTE automatic test software (optional)
- 19” rack mountable controller
- LOS (Line Of Sight) alignment of Multi-Sensor and Payload electro-optics
|
Model: METS
|
VS-8
|
S-10
|
L-10
|
VL-10
|
S-12
|
L-12
|
VL-12
|
L-14
|
VL-14
|
L-16
|
VL-16
|
L-19
|
VL-19
|
L-21
|
L-25 (1)
|
|
Clear Aperture, inch
|
8
|
10
|
12
|
14
|
16
|
19
|
21
|
25
|
|
Focal Length, inch
|
40
|
70
|
70
|
120
|
70
|
70
|
120
|
70
|
120
|
70
|
120
|
70
|
120
|
70
|
250
|
|
FOV, deg.
|
2.8
|
1.6
|
2.9
|
1.0
|
1.6
|
2.9
|
1.0
|
2.9
|
1.0
|
2.9
|
1.0
|
2.9
|
1.0
|
2.9
|
1.0
|
|
Target Positions
|
x8
|
x12
|
x6
|
x12
|
x12
|
x6
|
x12
|
x6
|
x12
|
x6
|
x12
|
x6
|
x12
|
x6
|
x6
|
|
Collimator Type
|
Reflective, off-axis
|
|
Spectral Band
|
0.4 µm to 15 µm
|
|
Operating Temperature
|
10°C to 35°C
|
|
Wavefront Quality
|
l/25 RMS at 633 µm
|
|
Optical Resolution
|
Diffraction-limited, on-axis
|
|
Communication
|
RS232, Ethernet, (Optional: GPIB IEEE-488)
|
* Additional collimator models with different apertures and focal lengths are available upon request.
Notes:
(1) The L-25 is a customized collimator. Other customized systems with different apertures and focal lengths are available upon request. See next page
(2) CI Systems offers a large variety of targets for applications from VIS to LWIR.
(3) Please see additional information on CI Systems’ CTE software for automatic testing
Radiation SOURCES
|
SR-800 4D
|
Differential Blackbody
|
|
SR-300
|
Integrating Sphere
|
|
SR-200
|
Cavity Blackbody
|
* Please see technical details of our blackbodies and integrating spheres.
* Additional radiation sources are available upon request.
| System | Aperture Diameter | Focal Length and FOV | View ICD | View 3D model |
|---|
| METS-VS-8 | 8” | FL=40”, FOV=2.8° |  |  |
| METS-S-10-12 | 10“, 12” | FL=70”, FOV=1.6° | | |
| METS-L-10-12-14 | 10“, 12”, 14” | FL=70”, FOV=2.9° | | |
| METS-L-16 | 16" | FL=70”, FOV=2.9° | | |
| METS-L-19 | 19" | FL=70”, FOV=2.9° | | |
| METS-L-21 | 21" | FL=70”, FOV=2.9° | | |
| METS-VL-10-12-14 | 10“, 12”, 14” | FL=120”, FOV=1.0° | | |
| METS-VL-16-19 | 16”, 19” | FL=120”, FOV=1.0° | | |
