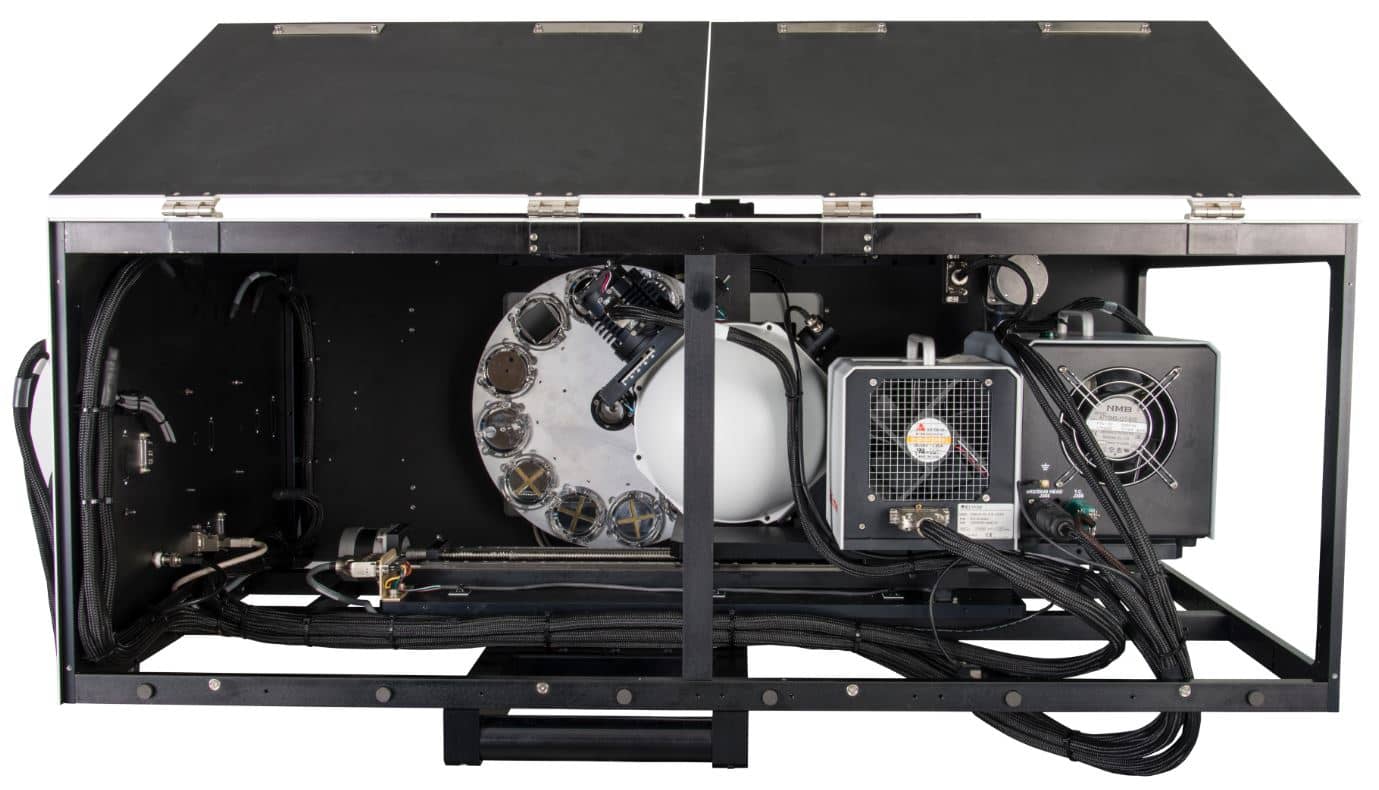

Infrared (IR) Targets for Electro Optical Test Systems

Infrared targets are patterns used as a basic tool for testing thermal imagers and enable inspection and certification of E-O equipment.

The IR targets are highly accurate with one side coated with high-emissivity paint and the reverse side polished for efficient energy reflection.

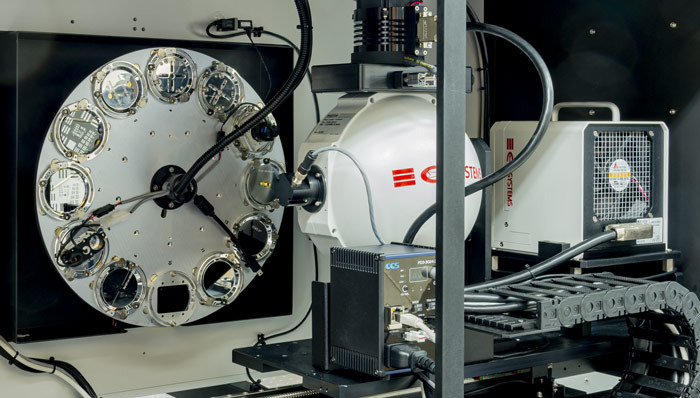

CI Systems has specialized in manufacturing of state-of-the-art Infrared targets for Electro-Optical test systems.

Over the years CI Systems has specializes in manufacturing customized targets of every challenging pattern or form, tailored to suit any E-O test system.


Additional Tools

Targets Calculator

A built in calculator for 4 bar and Pinhole targets.

Targets Calculator


CTE Software for Automatic Testing

CI Systems offers over 200 tests off the shelf. Commonly used tests for IR Imagers are: MTF , NETD, SiTF , MRTD, FOV, Uniformity , Distortion, Resolution, SNR.

CTE Software

For more information
SpecificationsType of targets



Target Type

Minimum dimension (3)



Emissivity

 4-Bar

20 µm



0.98 ± 0.02

 Slit

20 µm



0.98 ± 0.02

 Pinhole

     20 µm (4)



0.98 ± 0.02

 Square

20 µm



0.98 ± 0.02

 Cross

20 µm



0.98 ± 0.02

Commonly-Use Targets (1)

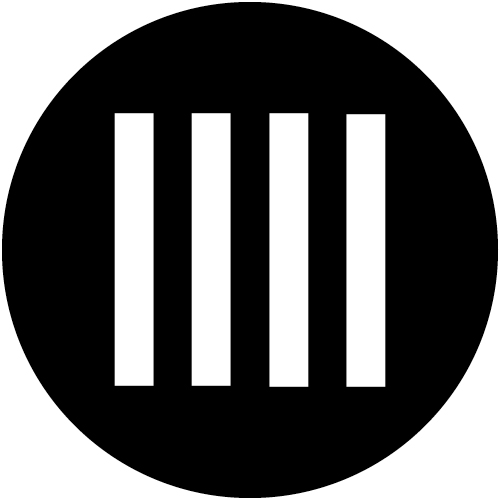

4-bars target for testing MRTD

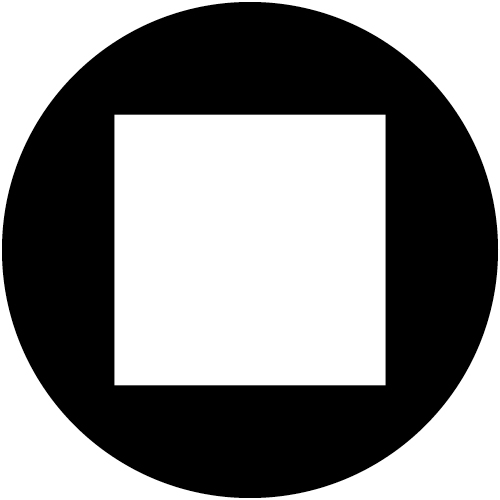

Square target for testing NETD, SiTF, FOV, MTF calibration

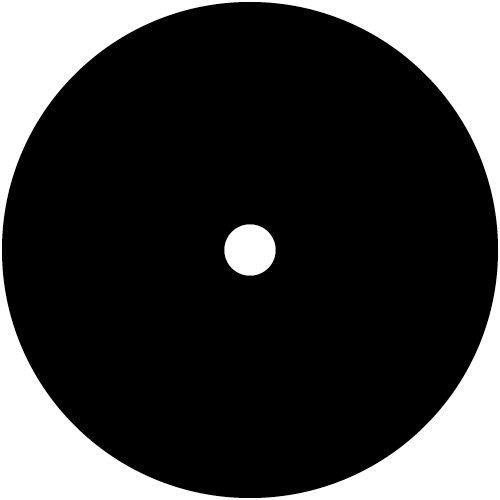

Pinholes for MDTD and Line of Sight boresight testing

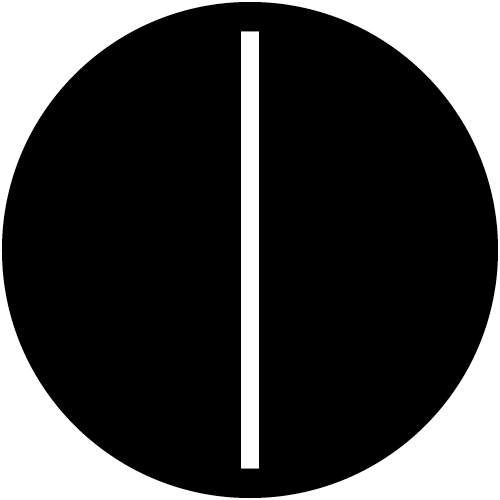

 Slit Target

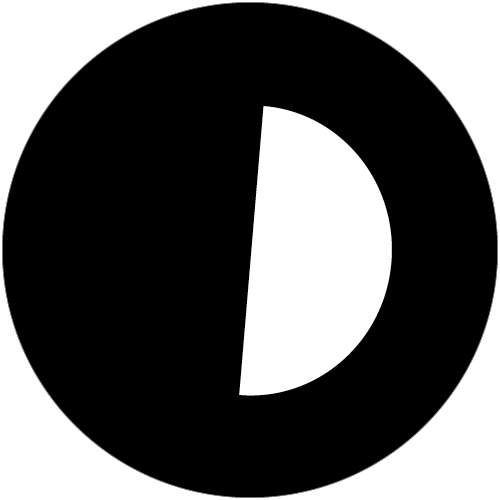

Step or Half-moon target for testing MTF

4-bars target for testing MRTD

Square target for testing NETD, SiTF, FOV, MTF calibration

Pinholes for MDTD and Line of Sight boresight testing

 Slit Target

Step or Half-moon target for testing MTF

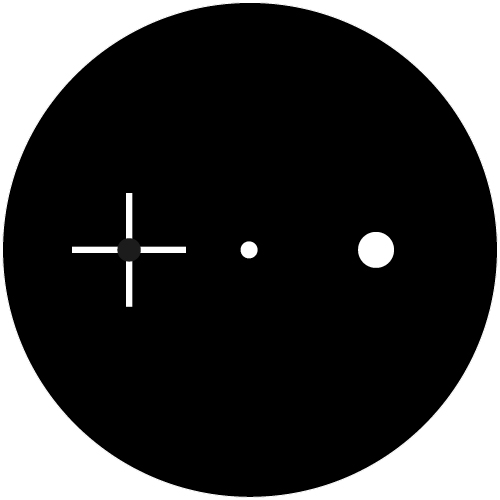

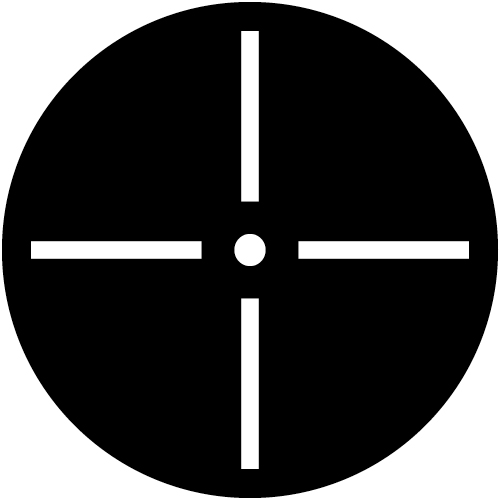

Cross target for testing FOV, Distortion, Alignment

Resolution Target See

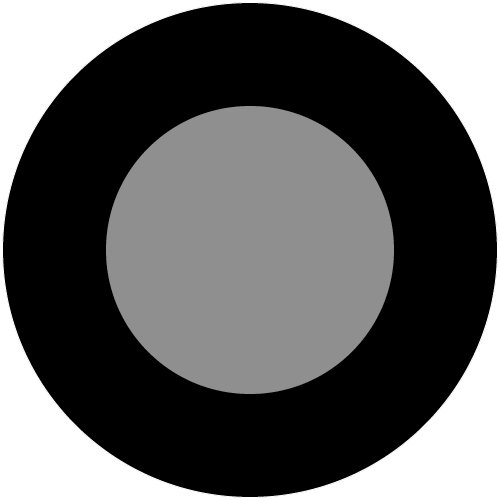

Gray Scale Target

Boresight Target for alignment of multi camera system

LOS Target for Line of Sight alignment

Cross target for testing FOV, Distortion, Alignment

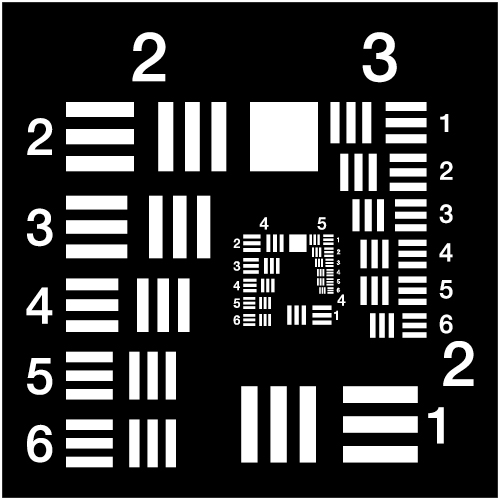

Resolution Target See (2)

Gray Scale Target

Boresight Target for alignment of multi camera system: Laser to FLIR / Laser to CCD

LOS Target for Line of Sight alignment


(1) Additional patterns are available upon request.

(2) Different contrasts are available for MRC Testing.
