Dual Band Fast Radiometer

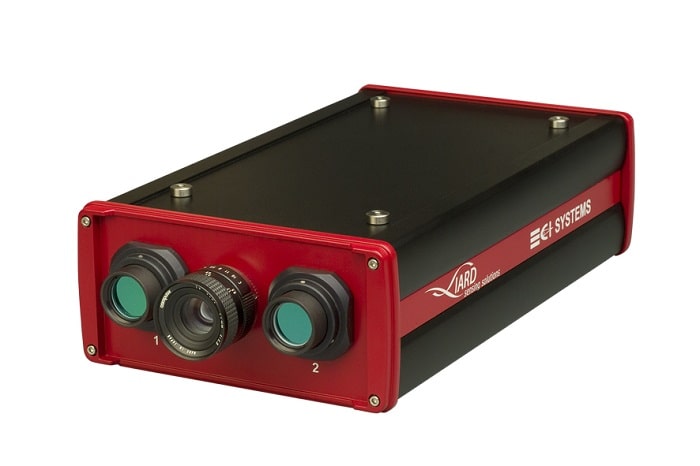

The Orion is a compact dual band fast radiometer. It can be used as a stand alone radiometer or as an add-on to slow imaging devices or Spectro-Radiometers for measurements of fast transients. The Orion supports two spectral channels for enabling different combinations from the VIS, NIR, SWIR, MWIR and LWIR spectral bands. It is fully computer controlled with 16 bit data acquisition integrated in the radiometer via the LAN interface. For custom channel configuration please enquire.

SpecificationsChannel options

Parameter

Value

Comments

Number of Channels

2



Spectral Band

1-2.5 μm (InGaAs detector) And

2.5-5.5 μm (PV-MCT detector)

Both are TE cooled

contact CI for additional options

Filters

Mounted on the front optics



Attenuators

Neutral density filters mounted on the front optics

OD = 1,2,3 available

Field of View (FOV)

12° (200 mrad)



Field of View non-uniformity

< 10%



Optics clear aperture

23mm



Rise time

< 40msec



Radiometer bandwidth

10kHz - 3db point



A/D rate

up to 3k sample/sec/channel



Dynamic range

> 70db

14 significant bits

Outputs

Data on LAN



Video aiming sight

FOV Video

 Output via BNC

Input

TTL trigger

via BNC

Environmental conditions





                             Operation

0°C - 40°C

Rugged for outdoor operation

                             Storage

-15°C ÷ 70°C



Power supply

100 - 240 VAC

External

Dimensions

L320 x W190 x H95 mm



Weight

< 6Kg



Spectral Range1

Detector Material

Cooling2

FOV mrad / O

Optics CA [mm]

0.4 - 1.0 µm

1.0 - 2.6 µm

2.0 - 5.0 µm

2.0 - 5.0 µm

8.0 - 12.0 µm

Si

InGaAs

PbSe

MCT

MCT

None

TEC

TEC

TEC

TEC

40 / 2.3°

40 / 2.3°

40 / 2.3°

40 / 2.3°

40 / 2.3°

23

23

23

23

23



For custom channel configuration please enquire.

1. This is the full spectral range. The user may use a spectral band pass filter to limit the spectral range according to the need.

2. Cooling: None= un-cooled, TEC= Thermoelectric cooling
