Setting New Standards In Electro-Optical Testing

Static Range Simulator

Relevant Documents
Download brochure (670KB)

SRS - the Static Range Simulator, is used to test the functionality of Laser Range Finders (LRF). The SRS can
simulate up to three different ranges. The SRS is Light weight, compact and portable device, Easy to operate,
and its flexibility allows users to specify any simulated range requested.
SRS System provides superior accuracy, when testing all LRF’s models currently available in market, including
simulating ranges of LRF’s that emits “Train Pulses”.

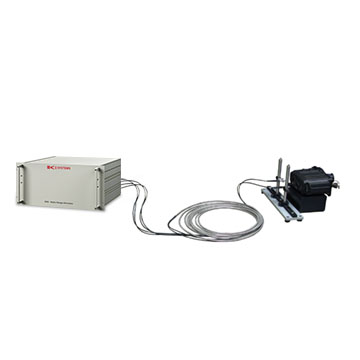

SRS System includes: Transmitter fiber optics, receiver collimator and fiber optic, mechanical jig for holding
the optic fibers.

More information
FeaturesSpecifications
  • Simulate ranges up to 50 km
  • Superior ranging accuracy
  • Light weight portable device and easy to operate
Model SRS
 Range simulation*  120 m - 50 km
 Range accuracy  ± 1 m
Dimensions (W x D x H) 260 x 260 x 175 mm
Weight 5.5 Kg
Operating condition: Ambient temperature 0 °C to +40 °C
Operating condition: Relative humidity Standard controlled temperature laboratory
Storage conditions: Ambient temperature  -20 °C to +70 °C
Storage conditions: Relative humidity   5% - 95% (non condensing)



Optional:

  • The SRS can simulates up to three different ranges
  • Optional attenuator for minimum detectable signal fiber
  • Optional baffle for cross-talk reduction
