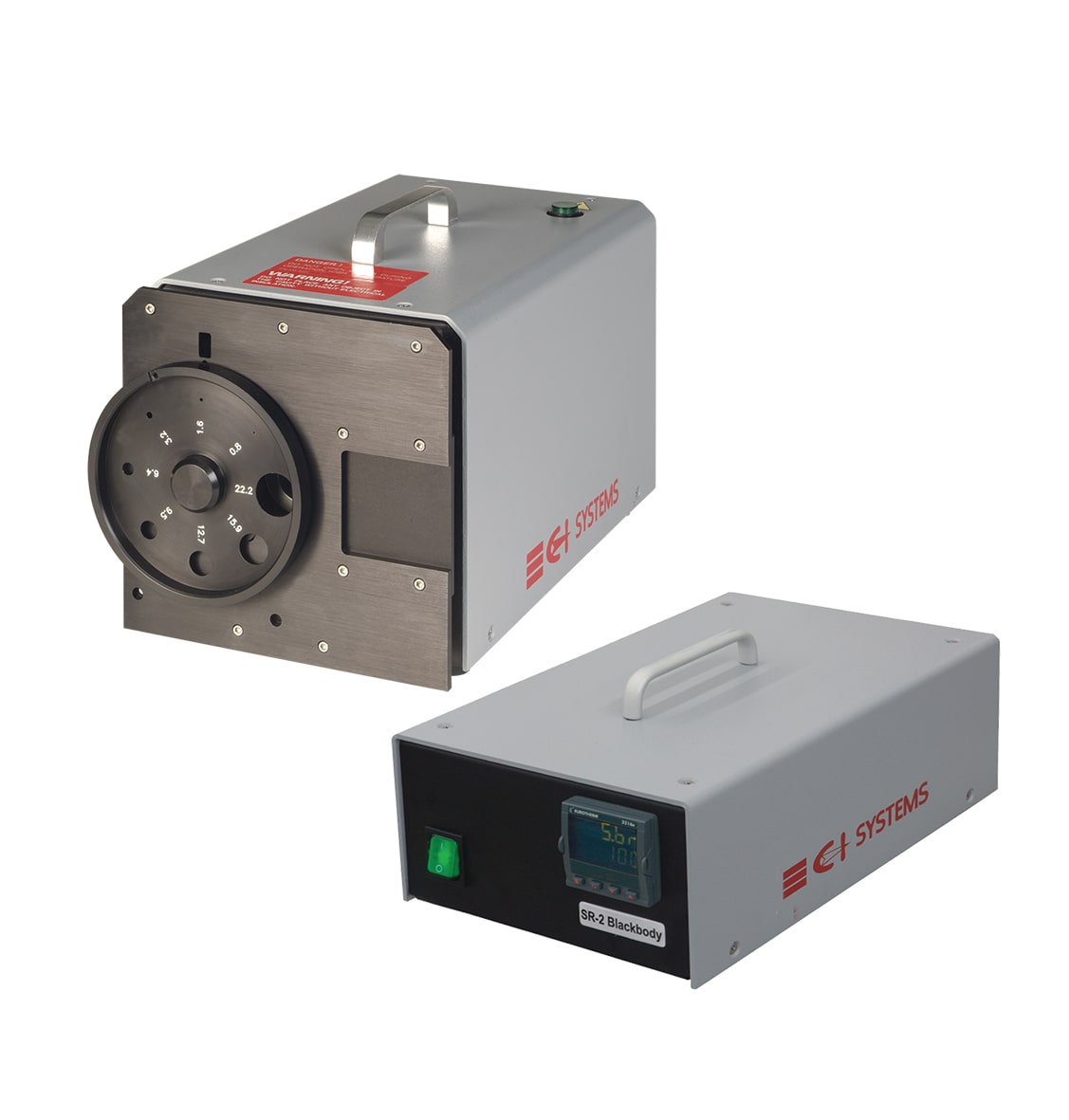

SR-2: Compact High Temperature Cavity Blackbody

Download Brochure
SR-2 Brochure (828KB)

The SR-2 is a highly reliable and durable cavity blackbody. The SR-2 uses a compact and lightweight controller. The SR-2 is operated using the controller’s front pannel. The calibration of the SR-2 is performed using the CK-20 calibration kit.

Ask for quotation

For more information
FeaturesSpecifications
  • High emissivity
  • Fast warm-up and cool-down
  • Long-term temperature stability
  • Manual aperture wheel included
  • NIST-traceable calibration
  • Computerized and fully automatic calibration
  • Quick calibration procedure by replacing the removable sensor
  • Head and controller interchangeable
  • Large color LCD display with touchscreen user interface
  • Remote control software included
  • Compact, portable controller
  • 19" rack-mount kit included for the controller

Model:

SR-2-32

SR-2-33  see note (2)

Aperture Diameter, inches

1”

1”

Temperature Range

100 – 1000 °C

100 – 1200 °C

Set Point & Readout Resolution

1 °C

1 °C

Temperature Accuracy

± 2.5 @ T<1000 °C

± 2.5 @ T<1000 °C

± 3.0 @ T>1000 °C

Temperature Stability

± 0.50 °C

Emissivity

0.99 ± 0.01 °C

Aperture Wheel Standard Aperture Diameters, mm  (3)

0.8, 1.6, 3.2, 6.4, 9.5, 12.7, 15.9, 22.2 mm

Communication Ports

RS232

Power Consumption (maximum)

1000 W

Operating Voltage

220 or 110 VAC (50/60 Hz)

Size, Blackbody Head (Height x Width x Depth)  (4)

22 x 20 x 33 cm

Weight, Blackbody Head  (4)

7 kg

Size, Controller (Height x Width x Depth)  (4)

28 x 9 x 9 cm

Weight, Controller  (4)

3 kg

Operating Temperature

0 to 50 °C

Notes:

  • All values are valid at an ambient temperature of 25°C, in a non-condensing environment.
  • The SR-2-33-220V model includes a transformer.
  • Custom-sized apertures available upon request.
  • All mechanical sizes are approximate. Please contact CI Systems for an ICD with exact dimensions.
