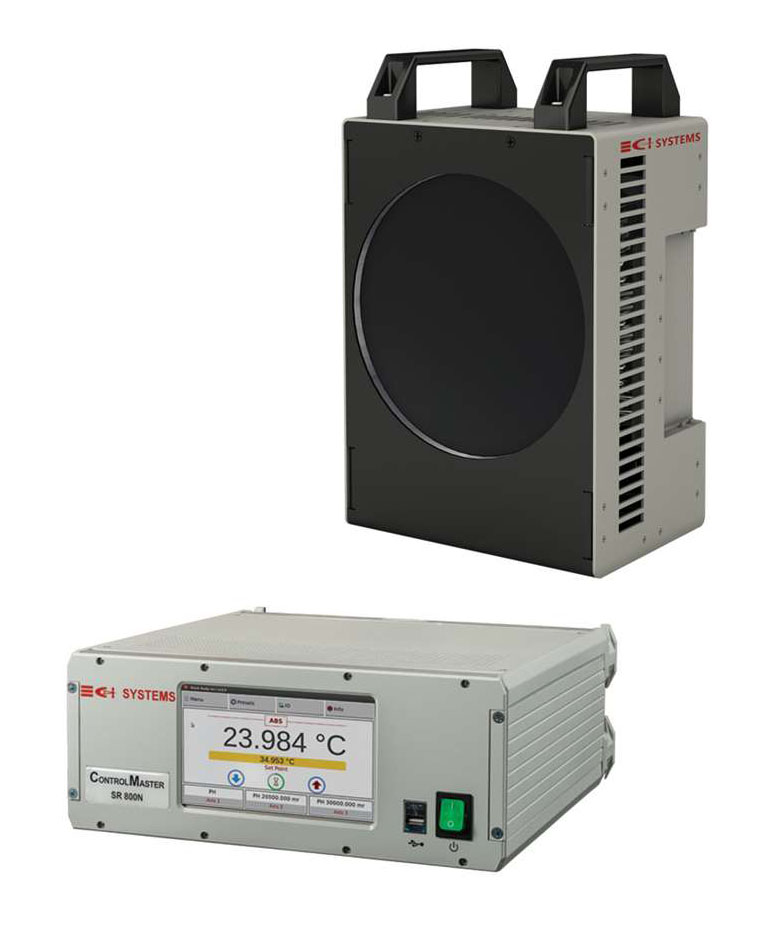

CI Systems’ advanced architecture ControlMaster SR-800N-SE sets a new standard for accuracy and uniformity in extended area blackbodies. Temperature measurement and calibration are both performed in the radiation head itself and transferred digitally to the controller. The result is a more accurate, stable, flexible and compact system that provides reliable NIST-traceable results.
The SR-800N-SE may be operated as a standalone unit, or integrated into a larger test system.
The spherical dome emitter enables the calibration of imagers with a very wide field of view.
The customization of head geometry allows a broad range of optical apertures andfields of view.
Temperature control is achieved using removable sensors that can easily be replaced by the user in just minutes. Replacing the sensors with factory-supplied sensors is a simple procedure that recalibrates the system for another full year. Users who prefer to perform the calibrations themselvesmay do so with our CK-800R calibration kit.
For more information
- Wide field of view coverage
- Standard circular emitter sizes ranging from 4" to 12“. Other sizes are available upon request
- Superior accuracy
- High-uniformity spherical dome emitting surface
- Resolution in Millidegrees-Kelvin
- Wide range of radiation temperatures
- Operates in a wide range of ambient temperatures
- Configurable stability window
- Head and Controller are interchangeable
- Low acoustic noise
Controller features:
- Large color LCD display with touchscreen user interface
- Ability to control up to four motorized devices
- Certified to MIL-T-28800D, CE, and FCC
- Compact, portable ControlMaster controller
- 19” rack-mount kit included for ControlMaster
- Communication ports: Ethernet and RS-232 (optional GPIB)
CALIBRATION
Temperature control is achieved using removable sensors that can easily be replaced by the user in just minutes. Replacing the sensors with factory-supplied sensors is a simple procedure that recalibrates the system for another full year.
Users who prefer to perform the calibrations themselves may do so using CI Systems’ CK-800R calibration kit.
Calibration features:
- Quick periodic calibration by replacing the removable sensor
- NIST-traceable calibration
- Dedicated remote control software included
|
Model: SR-800N-
|
4A-SE
|
7A-SE
|
12A-SE
|
|
Emitter Aperture Diameter
|
4“
|
7”
|
12”
|
|
Sagittal Depth
|
5.2 mm
|
16.4 mm
|
51.8 mm
|
|
Sphere Radius (1)
|
250 mm
|
|
Uniformity (2)
|
±0.010 °C
|
|
Set Point & Readout Resolution
|
0.001 °C
|
|
Absolute Temperature Range
|
5 °C to 85 °C
|
|
Absolute Temperature Accuracy (3)
|
0.015 °C @ T< 0 °C
0.007 °C @ 0 < T < 50 °C
0.015 °C @ T > 50 °C
|
|
Stability
|
±0.003 °C @ ΔT ≤ 10 °C
±0.008 °C @ ΔT > 10 °C
|
|
Emissivity
|
0.98 ± 0.02
|
|
Settling Time (at 0.01 °C)
|
15 seconds
|
|
Operating Voltage
|
95 to 240 VAC, 50/60 Hz
|
|
Power Consumption
|
200 W
|
600 W
|
1200 W
|
|
Mechanical Sizes: (4)
|
|
|
Blackbody Head Size, HxWxD
|
16x20x19 cm
|
34x20x14 cm
|
36x41x23 cm
|
|
Blackbody Head Weight
|
5 kg
|
12 kg
|
25 kg
|
|
Controller Size (19” Rack. 3U), HxWxD
|
15x34x35 cm
|
|
Controller Weight
|
10 kg
|
|
Operating Temperature, Controller
|
0 to 50 °C
|
|
Storage Temperature
|
-20 to 70 °C
|
Notes:
- Sagittal Depth is based on a 250mm sphere radius. Other radii are available upon request
- Uniformity values are for a ±1 °C step from ambient temperature over 80% of the central area. For other temperatures multiply by ΔT
- Accuracy is referenced to a NIST-calibrated CI Systems master sensor
- All mechanical sizes are approximates. Please contact CI Systems for an ICD with the exact dimensions.
- All values are valid at an ambient temperature of 25 °C in a non-condensing environment
- Typical yearly drift: 02 °C
- Total system uncertainty: 02 °C @ ΔT < ±25 °C and 0.03 °C @ ΔT > ±25 °C
ORDERING INFORMATION
Model: SR-800N - 1 A - SE
- Emitter Size option (4 / 7 / 12)
Example:
SR-800N-4A-SE
-
NIST-traceable calibration
-
Certified to MIL-T-28800D, CE, and FCC
-
Calibrated radiation heads independent of the controller
-
Removable sensor replacement for quick annual calibration
-
Configurable resolution and stability window
-
Ability to control up to four motorized devices
-
Ethernet and RS232 communication ports
-
USB communication by serial adaptor
-
Large color LCD display
-
Touch screen user interface
-
Compact and portable controller
-
19" rack mount kit included
-
Linux operating system
High uniformity
Wide range of temperatures
High resolution color display
Built-in MRTD testing for added efficiency
Built-in tests to shorten maintenance time
4’’ to 12’’ standard emitters (other sizes upon request)
Low acoustical noise
