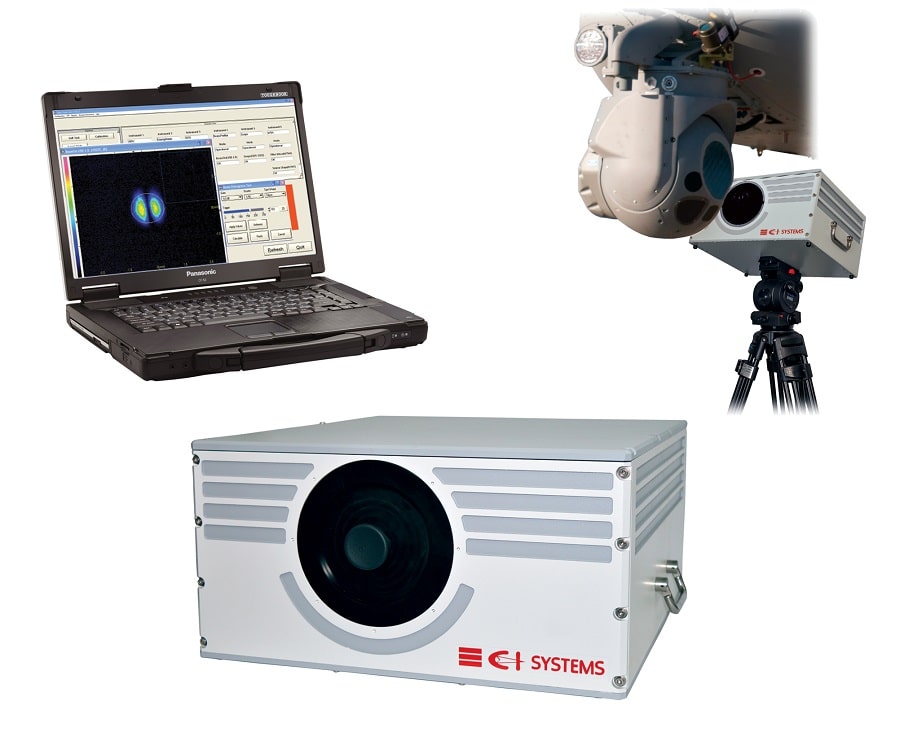

The DFLT offers fast, reliable, easy to operate and versatile testing of lasers Such as Laser Range Finders and Designators, in the field or at the lab/depot.

The DFLT tests all the significant parameters of laser systems such as energy, pulse width, PRF, beam divergence, range simulation & receiver sensitivity.

For more information

FeaturesSpecificationsLaser Test Capabilities

Portable, compact and light weight
User-friendly operation
Rugged construction
Compatible with various wavelengths
Fully computerized for automatic testing
User-friendly software included

Parameter:
Wavelengths:	905nm, 1064nm, 1300nm, 1535nm, 1540nm, 1550nm, 1570nm. See (a), (b)
Aperture:	150 mm
Control unit:	Desktop or Laptop
Environmental conditions:	Operating temperature: 0° to + 50°C non condensing humidity Storage temperature: -30° to + 70°C
Power consumption	200W
Power	110 - 220 VAC 50/60 Hz
Weight	25 Kg

Notes:

Up to 3 wavelengths per unit.
Other wavelengths are available upon request
Other tests are available upon request
For additional details, please contact CI Systems.

Test	Specifications
Pulse energy	Up to 140mJ (500mJ with external filter)
CW laser power	Up to 30 Watt
Pulse width	> 6 nsec
Missing pulses	Available
PRF	1 – 100 Hz.
Beam divergence	0.1 to 2.5 mrad
Range simulation	• Continuous 80m to 60 km • Step resolution 0.5m • Accuracy ± 0.5m • Up to 5 targets
Relative receiver sensitivity	Single value Go/No-Go test
Boresight	Visible imaging channel to Laser Transmitter
