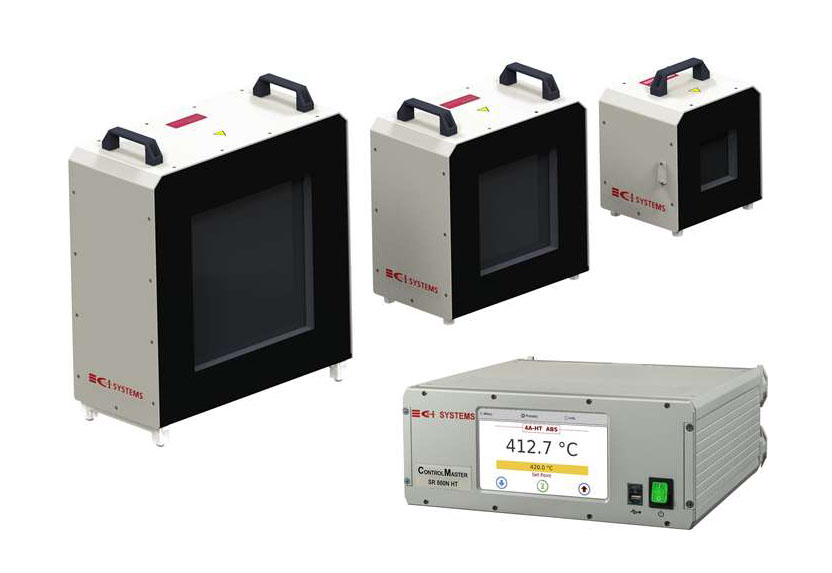

The SR-800N-HT is an absolute high-temperature extended area blackbody, providing excellent stability, accuracy, and uniformity. The SR-800N-HT is an extremely reliable calibration source with the flexibility required for testing a broad range of infrared imagers.
Two HT models are available:
- SR-800N-HT (High Temperature)
- SR-800N-HT-HA (High-Temperature & High-Accuracy)
The Super High Emissivity is available with AcktarUltra Black™coating.
For more information
- Standard blackbody emitter sizes ranging from 1" to 35“. Other sizes are available upon request.
- NIST-traceable(*) calibration
- High-uniformity emitting surface
- Long-term temperature stability
- Interchangeability between head and controller
- Computerized and fully-automatic calibration
- Dual Head use is available - please contact CI Systems
ControlMaster Controller features:
- Compact, portable controller
- Large color LCD display with touchscreen user interface
- Configurable resolution and stabilization window
- Certified to MIL-T-28800D and CE
- 19” rack-mount kit included
- Communication ports: Ethernet, RS-232, GPIB (optional)
- Remote control software included
- Ability to control up to four motorized devices (target wheel, etc.)
- Software Development Kit (SDK) for developers using C#, MATLAB, LabVIEW, Python and C++ - available upon request
(*) “NIST”: National Institute of Standards and Technology
|
» HT Models (High-Temperature)
|
|
Model name: SR-800N-
|
|
4HT
|
8HT
|
12HT
|
|
|
Emitter size
|
|
4” x 4”
|
8” x 8”
|
12” x 12”
|
|
|
Absolute temperature range
|
|
50 to 600 °C
|
|
|
Temperature Accuracy
|
|
0.5 °C
|
|
|
Emissivity (2)
|
|
1.00
|
|
|
Set point & readout resolution
|
|
0.1 °C
|
|
|
Settling time
|
|
< 15 minutes
|
|
|
Stability
|
|
±0.25 °C
|
|
|
Warm-up time from ambient to T-Max
|
|
60 minutes
|
|
|
Uniformity (3)
|
|
0.006 x T
|
|
|
Power Consumption
|
|
1,100 W
|
4,200 W
|
9,200 W
|
|
|
Operating voltage
|
230 VAC, 50/60Hz
|
|
230V-1Phase
|
230V-1Phase
|
230V-3Phase
|
|
|
110 VAC, 50/60Hz
|
|
110V-1Phase
|
110V-3Phase (4)
|
110V-3Phase
|
|
|
» HT-HA Models (High-Temperature & High-Accuracy) (*)
|
|
Model name: SR-800N-
|
1HT-HA
|
4HT-HA
|
8HT-HA
|
12HT-HA
|
35HT-HA
|
|
Emitter size
|
1” x 1”
|
4” x 4”
|
8” x 8”
|
12” x 12”
|
35” x 35”
|
|
Absolute temperature range
|
40 to 350 °C
|
40 to 450 °C
|
40 to 250 °C
|
|
Temperature Accuracy
|
0.1 °C
|
|
Emissivity (2)
|
1.00
|
|
Set point & readout resolution
|
0.01 °C
|
|
Settling time
|
< 10 minutes
|
|
Stability
|
±0.1 °C
|
|
Warm-up time from ambient to Tmax.
|
20 minutes
|
30 minutes
|
|
Uniformity (3)
|
0.003 x T
|
0.004 x T
|
|
Power Consumption
|
220 W
|
500 W
|
2000 W
|
9000 W
|
Contact CI
|
|
Operating voltage
|
230 VAC, 50/60Hz
|
230V-1Phase
|
230V-3Phase
|
230V-3Phase
|
|
110 VAC, 50/60Hz
|
110V-1Phase
|
110V-3Phase
|
-
|
(*) Optional: For HT-HA Models, ACKTAR Ultra Black™coating is available as an option with emissivity of 0.99±0.01, up to 10μm, up to 350°C
|
» Additional specifications for all models
|
|
Emitter size
|
1” x 1”
|
4” x 4”
|
8” x 8”
|
12” x 12”
|
35” x 35”
|
|
Operating Ambient Temperature
|
0 to 50 °C, non-condensing
|
|
Emitter Head dimensions, HxWxD (5)
|
10x11x8 cm
|
31x24x23 cm
|
40x37x23 cm
|
58x49x23 cm
|
140x115x30 cm
|
|
Emitter Head weight (5)
|
1.2 kg
|
7.2 kg
|
18.4 kg
|
41.8 kg
|
300 kg
|
|
Controller dimensions, HxWxD (5)
|
15x34x35 cm
|
Contact CI
|
|
Controller weight (5)
|
10 kg
|
Contact CI
|
|
Mounting Post for Emitter Head
|
Optional
|
-
|
-
|
-
|
-
|
Notes:
1) All values are valid at an ambient temperature of 25°C, and in a non-condensing environment.
2) Uncertainty 2%, and after radiometric correction.
3) Uniformity value is measured on 80% of the Central Area.
4) HT Model, 8”x8” 110V head is available as an option in a 1-phase configuration,
with a temperature range of 50 °C to 550 °C
5) All mechanical sizes are approximate. Please contact CI Systems for an ICD.
6) Specifications are subject to change without notice
- NIST-traceable calibration
- Certified to CE, and FC
