SR-800N: Extended Area Blackbody

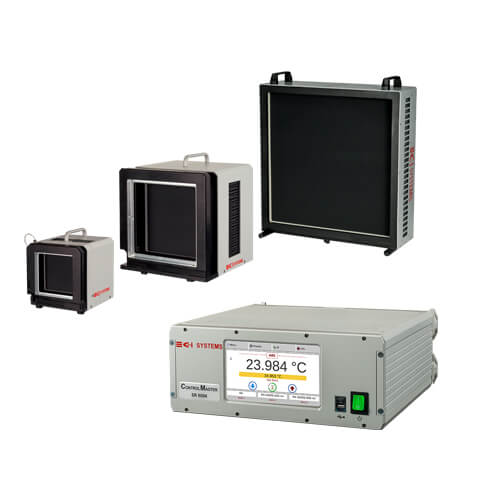

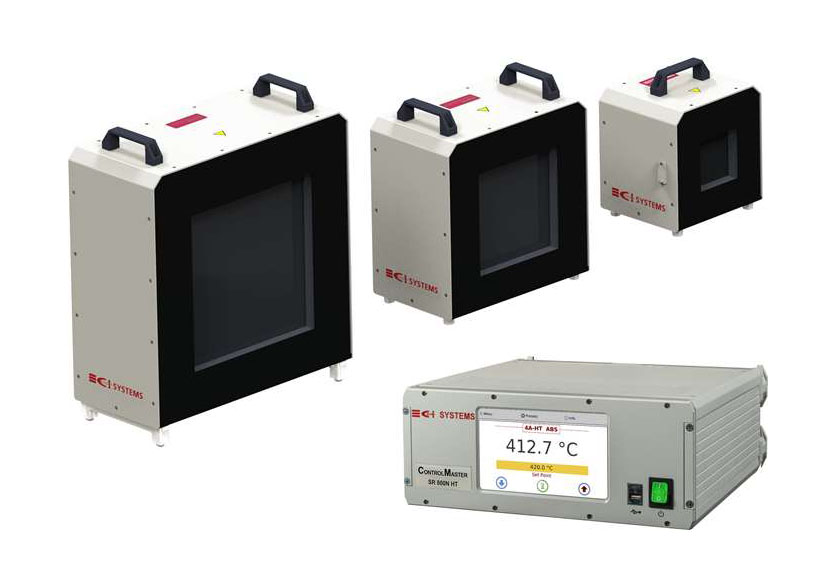

Extended Area Blackbody ControlMaster

CI Systems’ ControlMaster SR-800N sets a new standard for accuracy and uniformity in blackbody technology.

Temperature measurement and calibration are performed in the radiation head and then transferred digitally to the ControlMaster controller.

The result is accurate, stable, reliable, and NIST-traceable (*)


System Calibration

Temperature is controlled by easily-removable, user-replaceable sensors.

Our factory-supplied replacement sensors provide an efficient means for recalibrating the system, providing an additional 12 months of service.

Alternatively, customers may recalibrate the blackbody with our optional CK-800R.

  • Quick calibration by replacing the removable sensor.
  • NIST-traceable calibration.
  • Remote control software included.

(*) “NIST”: National Institute of Standards and Technology.

For more information
FeaturesSpecificationsCertificationsEmissivity GraphICD
  • Supports standard blackbody emitter sizes ranging from 2" to 40“. Other sizes are available upon request
  • Superior accuracy
  • High-uniformity emitting surface
  • Wide range of radiation temperatures
  • Operates in a wide range of ambient temperatures
  • Head and controller interchangeable
  • Resolution in millidegree-Kelvin
  • Configurable resolution and stability
  • Low acoustic noise
  • Nitrogen inlet for inert atmosphere on Low-Temperature (LT) models
  • Dual-head option available (one controller with two blackbodies)

 Controller features:

  • Large color LCD display with touchscreen user interface
  • Ability to control up to four motorized devices
  • Certified to MIL-T-28800D, CE, and FCC
  • Compact, portable controller
  • 19” rack-mount kit included for the ControlMaster
  • Communication ports: Ethernet, RS-232 (optional GPIB)
  • Light / Dark background option
  • Remote control software included



        »   Specifications for Standard Models

 Model: SR-800N-

2A,  2D

4A,  4D

4A,  4D

7A,  7D

8A,  8D

10A,  10D



Standard model

RR model (2)



Blackbody Emitter Size, inches

2 dia.

4x4

4x4

7x7

8x8

10x10

Absolute Temperature Range, °C

0 to 125

- 20 to 175

0 to 125

0 to 125

Differential Temperature Range, °C

- 25 to 100

- 40 to 150

- 25 to 100

- 25 to 100

Uniformity, °C (3)

±0.005

±0.010

Set Point Resolution, °C

0.001

Absolute Temp. Accuracy, °C (4)

0.015  @ T< 0  ,  0.007  @ 0 < T < 50  ,  0.015  @ T > 50

Differential Temp. Accuracy, °C (4)

0.008  @ ΔT ≤ 25  ,  0.015  @ ΔT > 25

Stability, °C

±0.003  @ ΔT ≤ 10  ,  ±0.008  @ ΔT > 10

Emissivity

0.98 ± 0.02

Settling Time )@ 0.01°C) , Sec.

15

Operating Voltage, VAC

95 to 240  (50/60 Hz)

Power Consumption, W

100

200

600

700

700

Size, BB Head Absolute, HxWxD cm (9)

Ø6.5x10

21x16.5x16

27x23x23

35x31x16

35x31x16

Weight, BB Head, kg  (9)

1

5

11

16

16

Size, Controller, HxWxD, cm  (9)

15x34x35 (3U)

Weight, Controller, kg  (9)

10

Operating Temp. Head, °C

- 20 to +70

Operating Temp., Controller, °C

0 to 50

Storage Temp., °C

- 20 to +70



        »   Specifications for Standard Models  (cont.)

  Model: SR-800N-

12A, 12D

14A, 14D

16A, 16D

20A, 20D

40A, 40D

Blackbody Emitter Size, inches

12x12

14x14

16x16

20x20

40x40

Absolute Temperature Range, °C

10 to 80

15 to 80

Differential Temperature Range,°C

- 15 to 55

- 10 to 55

Uniformity, °C (3)

±0.010

±0.015

±0.030

Set Point Resolution, °C

0.001

Absolute Temp. Accuracy, °C (4)

0.015  @ T< 0  ,  0.007  @ 0 < T < 50  ,  0.015 @ T > 50

Differential Temp. Accuracy, °C (4)

0.008  @ ΔT ≤ 25  ,  0.015  @ ΔT > 25

Stability, °C

±0.003  @ ΔT ≤ 10  ,  ±0.008  @ ΔT > 10

±0.010

Emissivity

0.98 ± 0.02

Settling Time )@ 0.01°C) , Sec.

15

Operating Voltage, VAC

95 to 240  (50/60 Hz)

Power Consumption, W

800

1500

1500

3000

7000

Size, BB Head Absolute, HxWxDcm (9)

40x36x16

59x46x17

59x46x17

71x62x20

128x76 x160

Weight, BB Head, kg  (9)

21

50

50

86

450

Size, Controller, HxWxD, cm(9)

15x34x35 (3U)

18x45x60 (4U)



Weight, Controller, kg  (9)

10

15

15

20

60

Operating Temp. Head, °C

- 20 to +70

Operating Temp., Controller, °C

0 to 50

Storage Temp., °C

- 20 to +70



        »   Specifications for Standard Models  (cont.)

                          Model: SR-800N-

12A, 12D

14A, 14D

16A, 16D

20A, 20D

40A, 40D

Blackbody Emitter Size, inches

12x12

14x14

16x16

20x20

40x40

Absolute Temperature Range, °C

10 to 80

15 to 80

Differential Temperature Range,°C

- 15 to 55

- 10 to 55

Uniformity, °C (3)

±0.010

±0.015

±0.030

Set Point Resolution, °C

0.001

Absolute Temp. Accuracy, °C (4)

0.015  @ T< 0  ,  0.007  @ 0 < T < 50  ,  0.015 @ T > 50

Differential Temp. Accuracy, °C (4)

0.008  @ ΔT ≤ 25  ,  0.015  @ ΔT > 25

Stability, °C

±0.003  @ ΔT ≤ 10  ,  ±0.008  @ ΔT > 10

±0.010

Emissivity

0.98 ± 0.02

Settling Time )@ 0.01°C) , Sec.

15

Operating Voltage, VAC

95 to 240  (50/60 Hz)

Power Consumption, W

800

1500

1500

3000

7000

Size, BB Head Absolute, HxWxDcm (9)

40x36x16

59x46x17

59x46x17

71x62x20

128x76 x160

Weight, BB Head, kg  (9)

21

50

50

86

450

Size, Controller, HxWxD, cm(9)

15x34x35 (3U)

18x45x60 (4U)



Weight, Controller, kg  (9)

10

15

15

20

60

Operating Temp. Head, °C

- 20 to +70

Operating Temp., Controller, °C

0 to 50

Storage Temp., °C

- 20 to +70

     »   Options for Room Temperature Environment

                                        Model:  SR-800N-

2A, 2D

4A, 4D

7A, 7D

8A, 8D

10A, 10D

12A, 12D

14A, 14D

16A, 16D

20A, 20D

ET

Absolute temperature range, °C Differential temperature range, °C

0 to 175

-25 to 150

---

---

0 to 175

-25 to 150

0 to 125

-25 to 100

10 to 125

-15 to 100

LT (5)

Absolute temperature range, °C

Differential temperature range, °C

---

---

-40 to 150

-65 to 125

---

---

-40 to 150

-65 to 125

---

---

WTR

Absolute temperature range, °C

Differential temperature range, °C

-35 to 150

-60 to 125

---

---

-20 to 150

-45 to 125

-15 to 150

-40 to 125

---

---

---

---

HE

High Emissivity (see graph below)

0.99 ± 0.01

---



     »  Options for Chamber Environment

                                        Model:  SR-800N-

2A, 2D

4A, 4D

7A, 7D

8A, 8D

10A, 10D

12A, 12D

14A, 14D

16A, 16D

20A, 20D

CH-STD

Chamber temperature, °C

Absolute temperature range, °C

Differential temperature range, °C

-30 to 70

-40 to 80

-10 to 40

CH-ET

Chamber temperature, °C

Absolute temperature range, °C

Differential temperature range, °C

-40 to   80

-40 to 150

-20 to 125

-40 to 80

-40 to 150

-35 to 125

-40 to   80

-40 to 150

-20 to 125

-40 to   80

-40 to 150

-20 to 100

-40 to   80

-40 to 150

-15 to 100

CH-LT (5)

Chamber temperature, °C

Absolute temperature range, °C

Differential temperature range, °C

---

---

---

-40 to   80

-40 to 150

-65 to 125

---

---

---

-40 to   80

-40 to 150

-65 to 125

---

---

---

CH-WTR

Chamber temperature, °C

Absolute temperature range, °C

Differential temperature range, °C

-40 to   80

-40 to 150

-60 to 125

---

---

---

-40 to   80

-40 to 150

-45 to 125

-40 to   80

-40 to 150

-40 to 125

---

---

---

Notes for Chamber Environment systems:

•       Differential accuracy0.020 °C  (at -20 °C < T ambient < 80 °C) 0.040 °C (at T ambient < -20 °C)

                                           Referenced to a NIST-calibrated CI’s master sensor.

•       Stability0.005 °C  (at ΔT<10 °C) ,  0.010 °C  (at ΔT>10 °C)

Notes (for pages 2-3):

  • All values are valid at an ambient temperature of 22 °C in a non-condensing environment
  • Available RR model (Reduced Range) blackbody with a lower cost. Please contact CI for details.
  • Uniformity values are for a ±1 °C step from ambient temperature over 80% of the central area. For other temperatures multiply by ΔT
  • Accuracy is referenced to a NIST-calibrated CI Systems master sensor
  • LT models include a refrigerator (power consumption depends on the model)
  • Typical yearly drift: 02 °C
  • Total system uncertainty: 02 °C @ ΔT < ±25 °C  and  0.03 °C @ ΔT > ±25 °C
  • Differential temperature range is limited to the absolute temperature range, and absolute temperature range is limited to the differential temperature range.
  • All mechanical sizes are approximate. Please refer to an ICD for the exact dimensions. The depth size of a Differential BB Head is larger by 50mm compared to depth size of the Absolute BB Head.
  • For mechanical characteristics of optional models please contact CI Systems













  • NIST-traceable calibration
  • Certified to MIL-T-28800D, CE, and FCC
