UVTS

UV Threat Simulator

Download Brochure

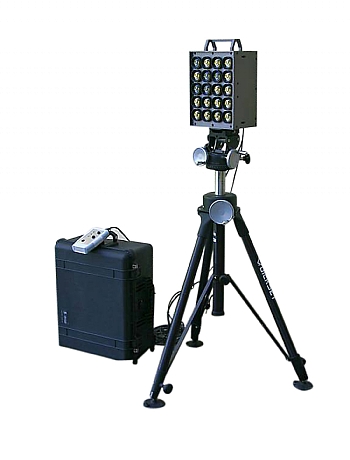

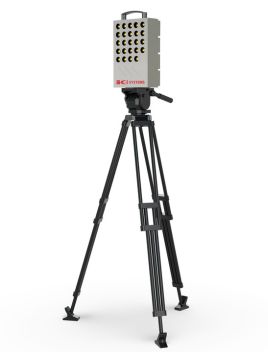

The UVTS is a short to long-range (Up to 6Km), electro-optical UV platform for testing missile approach warning systems and training air crews in the operation of these systems.

The UVTS simulates the UV radiation profile of an approaching missile and is available as a standalone or integrated with IRTS-L (IR Threat Simulator).

For more information

FeaturesEnhancementsSpecifications

Main Features:

Pre-loaded customized profiles
Withstands a wide range of field environmental conditions
Synchronization between multiple UVTS and IRTS to create a real-life multispectral simulation and to increase simulation range.
UVTS can be installed and operated from a moving platform (land or sea) to enable testing and training of fixed-wing platforms and ground vehicles.
Optional integrated radiometers to measure the UV/SWIR/IR countermeasure performance of the platform under threat.
Optional motorized Pan-Tilt Gimbal with video tracker.
Can the user also configure profiles? If so, it is important to mention that

Enhancements to the Basic System include:

The ability to synchronize between several UVTS and IRTS to create a true multispectral simulation

The ability to install and operate the UVTS from a moving platform (land or sea) to enable testing and training of fixed wing platforms and ground vehicles.

optional integrated radiometers to measure the UV/SWIR/IR countermeasure performance of the threatened platform.

Optional motorized pedestal with video tracker.

Multiple units work in sync to increase simulation range.

System Specifications:

	Specification:
Range	Up to 6 km
Wavelength	CWL: 270 ± 10 nm
Temporal Resolution	5msec update rate
Intensity Levels	1000 (linear uniform levels)
Beam Shape	Circular: 5° Full
Radiant Intensity (RI)	RI > 20 W/Sr
Profiles	Maximum duration of any profile is 50 sec. Up to 25 pre-configured profiles selectable
External Memory SD card	> 8 GB (Removable for data security)
Tripod Interface	1/4" and 3/8" screw interface
Software	Windows-compatible software for unit management, profile generation and storage Serial Communication RS485
Dimensions and Weight	• Dimensions (HxWxD): 14.5”x9.9”x4.1” (37x25x10.5 cm) • Weight: 23 Ibs. (10 Kg), excluding case
Environmental	• Environmental Testing per MIL-STD • Operating temperature: -10°C to +50°C, Storage temperature: -40° to +70°C • Relative humidity: up to 80%
Accessories Included	Profile generation software, Alignment viewfinder, Pelican carrying case, System manual
