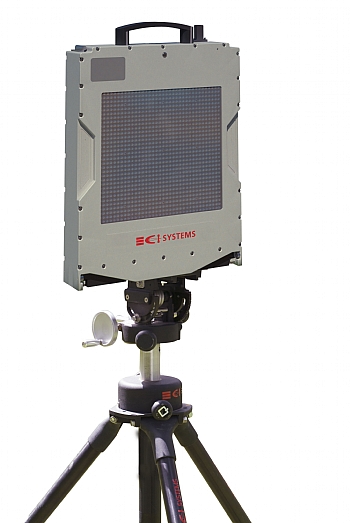

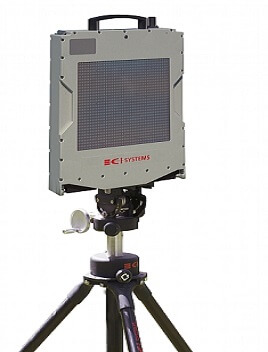

SWTS

SWIR (Short Wave Infrared) Threat Simulator

Download Brochure

The SWTS is a short to long-range electro-optical signature simulator for testing missile approach warning systems and training air crews in the operation of these systems.

The SWTS simulates the SWIR profile of an approaching missile, based on input parameters such as engine signature, atmospheric conditions, speed, distance and more.

For more information

FeaturesEnhancementsOptionsSpecificationsAccessories

Main Features

Easy pushbuttons manual operation
Simulation of fast phenomena (eject and boost)
Customized missile profiles
Withstands field environmental conditions
Installation by single operator
Rugged and reliable
Can be synchronized with multiple SWTS, UVTS and IRTS-L to create a true-to-life multispectral simulation
Can be installed and operated from a moving platform (land or sea) to enable testing and training of fixed wing platforms and ground vehicles
Optional integrated radiometers to measure the performance of the UV/SWIR/IR countermeasures on the platform under threat
Optional motorized Pan-Tilt gimbal with video tracker
Multiple units can work in sync to increase simulation range
Can the customer configure profiles? If so, it is worth mentioning

The ability to synchronize between several SWTS , UVTS and IRTS to create a true multispectral simulation
The ability to install and operate the SWTS from a moving platform (land or sea) to enable testing and training of fixed wing platforms and ground vehicles
Optional integrated radiometers to measure the UV/SWIR/IR countermeasure performance of the threatened platform
Optional motorized pedestal with video tracker
Multiple units working in sync to increase simulation range

Manual operation (push buttons)
Simulation of fast phenomena (eject and boost)
Customized missile profi les
Withstands fi eld environmental condition
Installation by single operator
Rugged and reliable

System Specifications

	Specification:
Wavelength	CWL: 1550nm, BW: ± 50nm
Temporal Resolution	10 kHz
Intensity levels	1000
Beam Shape	Circular: 10°
Radiant Intensity(RI)	RI >16 W/Sr
Profiles	• Accepts short, medium and long-distance profiles and custom test waveforms. • Maximum duration of any profile is 15 seconds • Up to 11 profiles selectable via pushbutton control or wireless remote control
User Interface	Pushbutton with LCD (external control)
Tripod Interface	1/4" and 3/8" screw interface
Software	Windows-compatible software for unit management
Dimensions and Weight	• Dimensions (HxWxD): 17.7”x14.7”x2.75” (45 x 37.5 x 7 cm) • Weight: 23 Ibs. (10.5 Kg), excluding carring case
Environmental	• Waterproof: IP 66 rating • Operating temperature: -20°C to +70°C. • Storage temperature: -40° to +80°C. • Relative humidity: Up to 95%
Safety	CLASS 1M
Accessories Included	• Profile generation software • Alignment viewfinder • Direct sunlight protection hood • Pelican carrying case • System manual

For additional information please contact CI Systems

Profile generation software
Alignment viewfinder
Direct sun protection hood
Pelican carrying case
